A main purpose and scope

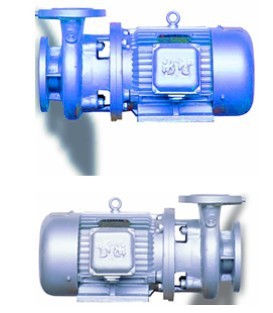

1.IZ type pump is a hydraulic model advanced, pump and motor direct a direct connection type single-stage single suction centrifugal pump. Compared with theIB.IS single stage single suction centrifugal pump has simple structure, smaller volume, low noise, high efficiency and energy saving, and convenient repair and maintenance characteristics. Inlet and outlet flange mounting dimensions and IS,IB the same pump. The product conforms to the Q/HSBJ304-1992 standard.

IZ type pump for honest high-rise building water supply and drainage, fire fighting water and long distance water, can be widely used in agricultural irrigation and drainage, and is an ideal water supply and drainage pump.

The IZF type corrosion resistant monoblock pump can be used for textile,chemical, pharmaceutical, food, oil refining and other industrial conveyorchemical corrosive liquids occasions, IZB explosion-proof direct coupled pump is suitable for long-term or temporary existence of explosive gas mixture of place.

Working conditions in two products:

1 system pressure: ≤ 0.8MPa (8 kg / cm 2)

2 environmental temperature does not exceed 40 ℃.

3 water for the water, the hot water is soft water, containing no solid particles,medium temperature does not exceed 120 ℃. The IZF type corrosion resistantmonoblock pump, medium temperature does not exceed 105 ℃.
